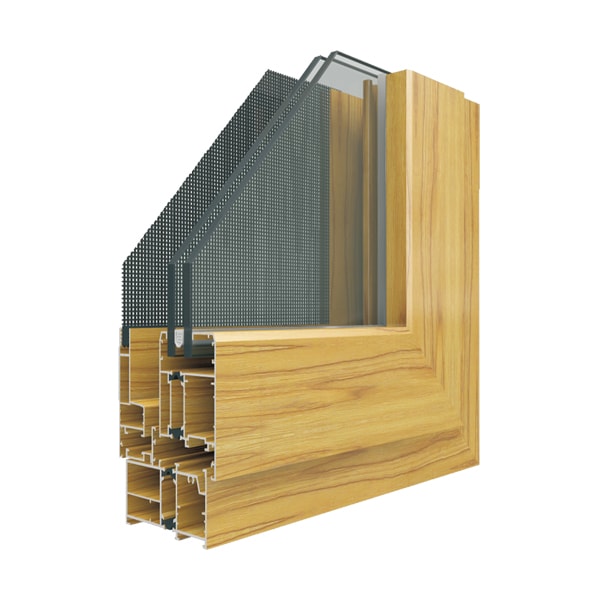

Aluminum XMGR85 Heat Insulation Window

  • Opening Style: Opening inwards, Casement
  • Alloy & Temper: Aluminum 6063-T5
  • Size: As per drawing
  • Surface Treatment: Powder coated, Electrophoretic coated, PVDF coated, wood transfer
  • Quality Standard & Certification: GB/T5237-2017, AAMA, CQM, Qualicoat, SEASIDE
  • Class Option: Double glazed: 5-9 (or 12)-5mm
  • Low-E: Tinted/frosted/obscure
  • Hardware: CMECH, KIN LONG, Roto, SIEGENIA
  • Payment Term: T/T (30% advance payment/deposit by T/T, and 70% paid against copy of B/L afters)
  • Delivery Terms: FOB, EXW

2F63136-J

2F79980-J

2F303234-J

2F402522

5609PU614

5721M676A

5720M660

5722MJ219

101C

402CJ

9107445

9016

Aluminum XMGR85 Heat Insulation Window Assembly Structure

Aluminum XMGR85 Heat Insulation Window Assembly Structure

Aluminum XMGR85 Heat Insulation Window Assembly Structure

Aluminum XMGR85 Heat Insulation Window Assembly Structure

Profile Processing Cutting

Profile Processing Cutting

45 Degrees Angle Cutting

45 Degrees Angle Cutting

End Face Milling of Middle Column

End Face Milling of Middle Column

Profile Lock Body Corner Connector Punching

Profile Lock Body Corner Connector Punching

Open Screw Holes for Hardware Fittings

Open Screw Holes for Hardware Fittings

Cutting Corner Connector

Cutting Corner Connector

45 Degrees Profile Impact Corner Connector

45 Degrees Profile Impact Corner Connector

Doors and Windows Assembly

Doors and Windows Assembly

Stick Protective Film

Stick Protective Film

Install Glass Glue

Install Glass Glue

Door and Window Installation and Debugging

Door and Window Installation and Debugging

Finished Product Debugging

Finished Product Debugging

Check the Size

Check the Size

The Finished Product Delivery

The Finished Product Delivery

Aluminum XMGR85 Heat Insulation Window Accessories

C-slot Friction Hinge

Gauze Window Friction Hinge

Hidden Hinge

K-slot Friction Hinge

Narrow Frame Handle

Prying Resistant Transmission Drive Shell

Safety Lock Bar

Safety Lock Bracket

Shifter Fork Handle

Square Shaft Handle

Transfer Bar

T-shaped Parts

Type I Handle

Features

This kind of casementwindow has high-end elegant appearance. The glass sash adopts the outward opening mode, and the inner opening screen sash can be opened independently.  It is strong, durable, anti-mosquito, anti-theft and good ventilation effect. The screen sash adopts European standard notch, and can be equipped with European standard hardware. The glass sash can be assembled by chain or hinge, with high universality. Screen sash and glass sash are controlled by different handles, which are convenient for processing, operation, disassembly and cleaning. The window sash handles are more durable and elegant.  Detachable security mesh provides more protection for children. Strengthen the stainless steel screen improve the anti-theft performance.The window sashes, window frames are sealed with double rubber strips. Its fashionable and elegant appearance is suitable for private villa.

Performance

Air Classification-Class 7 (m³/m•h)

Water Tightness-Class 5: 600 Pa

Wind Resistance-Class 7: 4.0 kPa

Soundproof-Class 5: 40 dB

Thermal Transmittance Uf-Class 6: 2.0w/(㎡•k)

Because the aluminum alloy is a metal, the warmness conduction is extraordinarily fast, so when the temperature distinction between indoor and outside is large, the aluminum alloy can emerge as a “bridge” for transferring heat. Door and window made with the aid of aluminium alloy has terrible warmth insulation overall performance .The thermal spoil aluminum is disconnected from the center of the aluminum alloy.

It makes use of nylon or PVC to join the aluminum heat insulation window. We comprehend that the warmth conduction of the nylon or PVC is of course slower than that of the metal, so the warmth is no longer effortless to pass by thru the complete material. The thermal insulation overall performance is additionally improved.

The effects of  aluminium windows and doors is:

1.The aluminum windows and  doors have proper thermal insulation. The internal and outer frames of the heat-insulating profile are softly combined, the body is made of a rubber strip, and the double-hair strip is sealed.Airtight, watertight performance, outstanding thermal insulation performance;In addition to insulated glass , which makes the window without a doubt sound insulation, warmth insulation, warmth preservation, incredible function, saves a lot of mining and cooling costs.

2.Waterproof characteristic of aluminum windows and doors. The shape of the drainage gadget is designed by using the precept of stress balance, and the slope of the inclined sketch is stepped, and the drainage port is provided, the drainage is smooth, and the watertight is good.

3.The aluminum windows and doors forestall condensation. The damaged aluminum profile of the bridge can comprehend the three-way sealing shape of the door and window, moderately separate the water vapor chamber, and efficiently attain the strain stability of gasoline and water, extensively enhance the water tightness and air tightness of the door and window.
