Xmks140 narrow frame sliding door (kaisenberg system)

  • Opening Style: Sliding
  • Alloy & Temper: Aluminum 6063-T5
  • Size: As per drawing
  • Surface Treatment: Powder coated, Electrophoretic coated, PVDF coated, wood transfer
  • Quality Standard & Certification: GB/T5237-2017, AAMA, CQM, Qualicoat, SEASIDE
  • Class Option: Double glazed: 5-9 (or 12)-5mm
  • Low-E: Tinted/frosted/obscure
  • Hardware: CMECH, KIN LONG, Roto, SIEGENIA
  • Payment Term: T/T (30% advance payment/deposit by T/T, and 70% paid against copy of B/L afters)
  • Delivery Terms: FOB, EXW














1 Profile Processing Cutting.jpg

Profile Processing Cutting

2 45 Degrees Angle Cutting.jpg

45 Degrees Angle Cutting

3 End Face Milling of Middle Column.jpg

End Face Milling of Middle Column

4 Profile Lock Body Corner Connector Punching.jpg

Profile Lock Body Corner Connector Punching

5 Open Screw Holes for Hardware Fittings.jpg

Open Screw Holes for Hardware Fittings

6 Cutting Corner Connector.jpg

Cutting Corner Connector

7 45 Degrees Profile Impact Corner Connector.jpg

45 Degrees Profile Impact Corner Connector

8 Doors and Windows Assembly.jpg

Doors and Windows Assembly

9 Stick Protective Film.jpg

Stick Protective Film

10 Install Glass Glue.jpg

Install Glass Glue

11 Door and Window Installation and Debugging.jpg

Door and Window Installation and Debugging

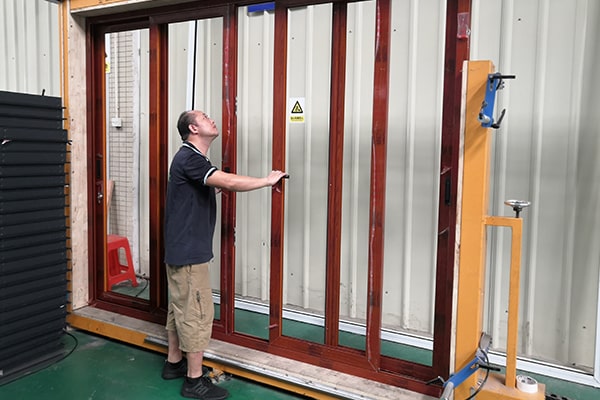

12 Finished Product Debugging.jpg

Finished Product Debugging

13 Check the Size.jpg

Check the Size

14 The Finished Product Delivery.jpg

The Finished Product Delivery


Features

1.Outstanding safety design
It has the advantages of simple structure, practical function, resistance to wind pressure and not easy to deform. When the door leaf is closed, the lock seat is designed with hidden anti prying locking point, which is safer to use.
2.More convenient equipment
Fast installation design, fast installation of hardware and accessories, effective improvement of processing efficiency by 50%.
3.Long service life
The use of sealant strip (EPDM) has strong anti-aging performance, increasing water tightness and air tightness; replaceable stainless steel guide rail has higher strength, longer service life and less sports assistance; it can be repeatedly opened for 120000 times (International 100000 times), meeting the service life of more than 30 years.
4.Technical Executive Standard
It meets the European Union CE, American ASTM standards and Chinese GB standards.

Performance

Air Classification Class 6 (m³/m•h)

Water Tightness Class 4: 450 Pa

Wind Resistance Class 7: 4.0 kPa

Soundproof Class 5: 40 dB

Thermal Transmittance Uf Class 5: 2.5w/(㎡•k)
